TRACCESS 160-51

Product Highlights

dotted line

51 ft / 15.8 m working height

24 ft / 7.5 m outreach

550 Ib / 250 kg load capacity

  • Most versatile boom configuration with telescoping upper boom, articulating jib, and rotating basket
  • CTE Connect Management system provides real-time data, including GPS tracking, diagnostics, and more
  • Sigma boom articulation
  • 400° non continuous turret rotation
  • Proportional simultaneous controls with smooth acceleration and deceleration
  • 2.4 GHz remote control with integrated display, home function, stabilization, and start/stop
  • Aluminum basket available
    in single (2’6”x2’3”x3’7”) or double (4’3” x 2’3” x 3’7”) personnel sizes
  • Fiberglass bucket upgrade available
  • ±90° hydraulic basket rotation
  • Basket leveling with electronic adjustment from remote controller
  • Engine start and stop controls from basket
  • Dual drive speed
  • Track with extends from 2’7” to 3’9”
  • CAN BUS electronic management system
  • 12V electric system
  • Load cell consistently measures weight in basket
  • 4 hydraulic outriggers with ground pressure sensors
  • Hour meter
  • 110 V AC EC electrical socket in the basket
  • Standard boom colors blue (RAL 5017) or white (RAL 9003)
  • Grade ability approximately 25%
  • 120 V electric motor for interior operation available
  • Rise and drive jib functionality - ability to drive with jib raised
  • Automatic stabilization
  • Can be towed under CDL

  • Honda 11 Hp gas engine
  • Lombardini diesel engine (standard)
  • 48V Lithium battery

  • Most versatile boom configuration with telescoping upper boom, articulating jib, and rotating basket
  • Sigma boom articulation
  • 400° non continuous turret rotation
  • Proportional simultaneous controls with smooth acceleration and deceleration
  • 2.4 GHz remote control with integrated display, home function,15’4’’ stabilization and start/stop
  • Aluminum basket available
    in single (2’6”x2’3”x3’7”) or double (4’3” x 2’3” x 3’7”) personnel sizes
  • Fiberglass bucket upgrade available
  • ±90° hydraulic basket rotation
  • Basket leveling with electronic adjustment from remote controller
  • Engine start and stop controls from basket
  • Dual drive speed
  • Track with extends from 2’7” to 3’9”
  • CAN BUS electronic management system
  • 12V electric system
  • Load cell consistently measures weight in basket
  • 4 hydraulic outriggers with ground pressure sensors
  • Hour meter
  • 110 V AC EC electrical socket in the basket
  • Standard boom colors blue (RAL 5017) or white (RAL 9003)
  • Grade ability approximately 25%
  • 110 V electric motor for interior operation available
  • Rise and drive jib functionality - ability to drive with jib raised
  • Automatic stabilization
  • Can be towed under CDL

  • Honda 11 Hp gas engine
  • Lombardini diesel engine (standard)
  • 48V Lithium battery

Technical Diagrams

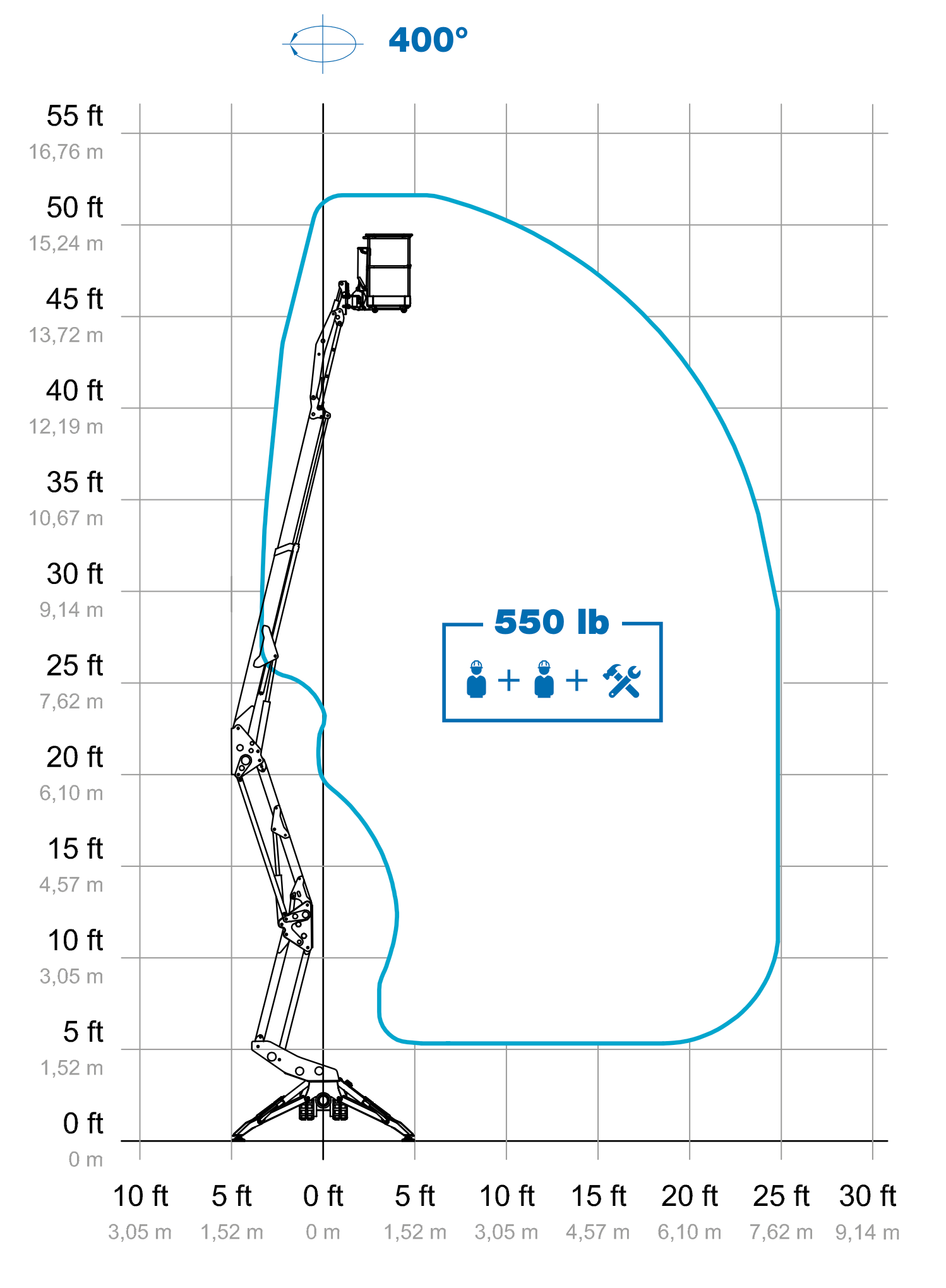

Working Envelope

TRACCESS 160-51 Working Envelope

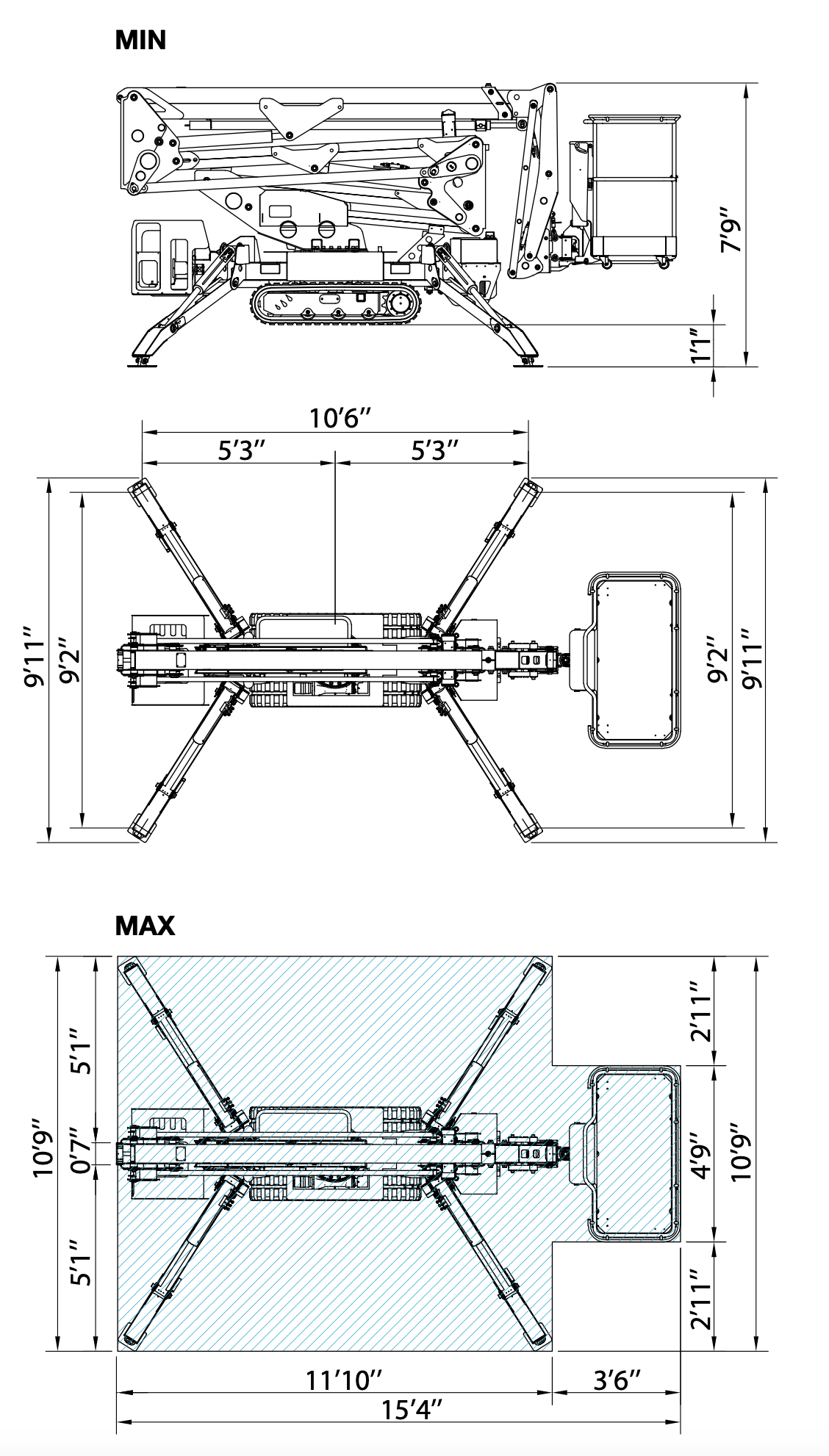

Dimensions

TRACCESS 160-51 Dimensions
