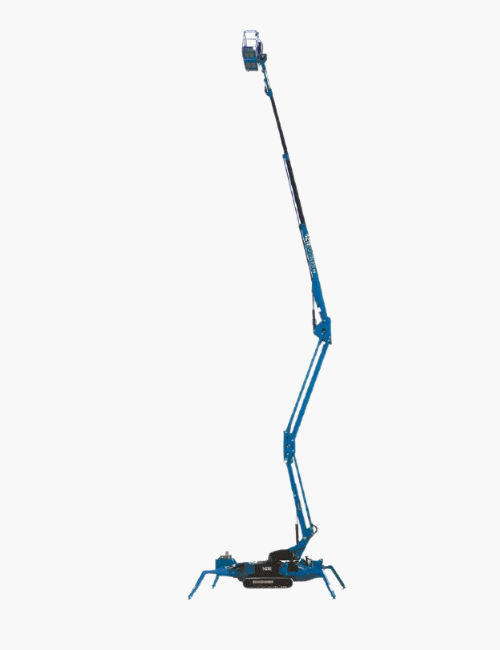

TRACCESS 270-88 Aerial Lift

TRACCESS 270-88

Product Highlights

dotted lines

88 ft / 27 m working height

46 ft / 14 m outreach

550 Ib / 250 kg load capacity

  • Most versatile boom configuration with telescoping upper boom, articulating jib, and rotating basket
  • CTE Connect Management system provides real-time data, including GPS tracking, diagnostics, and more
  • Sigma boom articulation
  • 640° non continuous turret rotation
  • Proportional simultaneous controls with smooth acceleration and deceleration
  • Control console in basket with operator safety switch » 2.4 GHz remote control with integrated display, home function, stabilization, and start/stop
  • Graphic diagnostic display
  • Aluminum basket available in single (2’6” x 2’3” x 3’7”) or double (4’3” x 2’3” x 3’7”) personnel sizes
  • Fiberglass bucket upgrade available
  • ± 90° hydraulic basket rotation
  • Hydraulically controlled basket leveling manually adjustable from the remote
  • Track width extends from 2’6” to 4’2”
  • Dual drive speed
  • Load cell consistently measures weight in basket
  • 4 outriggers with sensor contacts and outrigger covers
  • Stabilization management with S3 EVO with 4 independent stabilizers
  • Maneuvering acceleration and deceleration automatically electronically controlled based on working conditions
  • Rise and drive jib functionality - ability to drive with jib raised
  • Can be towed under CDL

  • All 270s come standard with Kubota D902 (3cyl) & 48 V battery for hybrid operation

  • Most versatile boom configuration with telescoping upper boom, articulating jib, and rotating basket
  • Sigma boom articulation
  • 640° non continuous turret rotation
  • Proportional simultaneous controls with smooth acceleration and deceleration
  • Control console in basket with operator safety switch » 2.4 GHz remote control with integrated display, home function, stabilization, and start/stop
  • Graphic diagnostic display
  • Aluminum basket available in single (2’6” x 2’3” x 3’7”) or double (4’3” x 2’3” x 3’7”) personnel sizes
  • Fiberglass bucket upgrade available
  • ± 90° hydraulic basket rotation
  • Hydraulically controlled basket leveling manually adjustable from the remote
  • Track width extends from 2’6” to 4’2”
  • Dual drive speed
  • Load cell consistently measures weight in basket
  • 4 outriggers with sensor contacts and outrigger covers
  • Stabilization management with S3 EVO with 4 independent stabilizers
  • Maneuvering acceleration and deceleration automatically electronically controlled based on working conditions
  • Rise and drive jib functionality - ability to drive with jib raised
  • Can be towed under CDL

  • All 270s come standard with Kubota D902 (3cyl) & 48 V battery for hybrid operation

Technical Diagrams

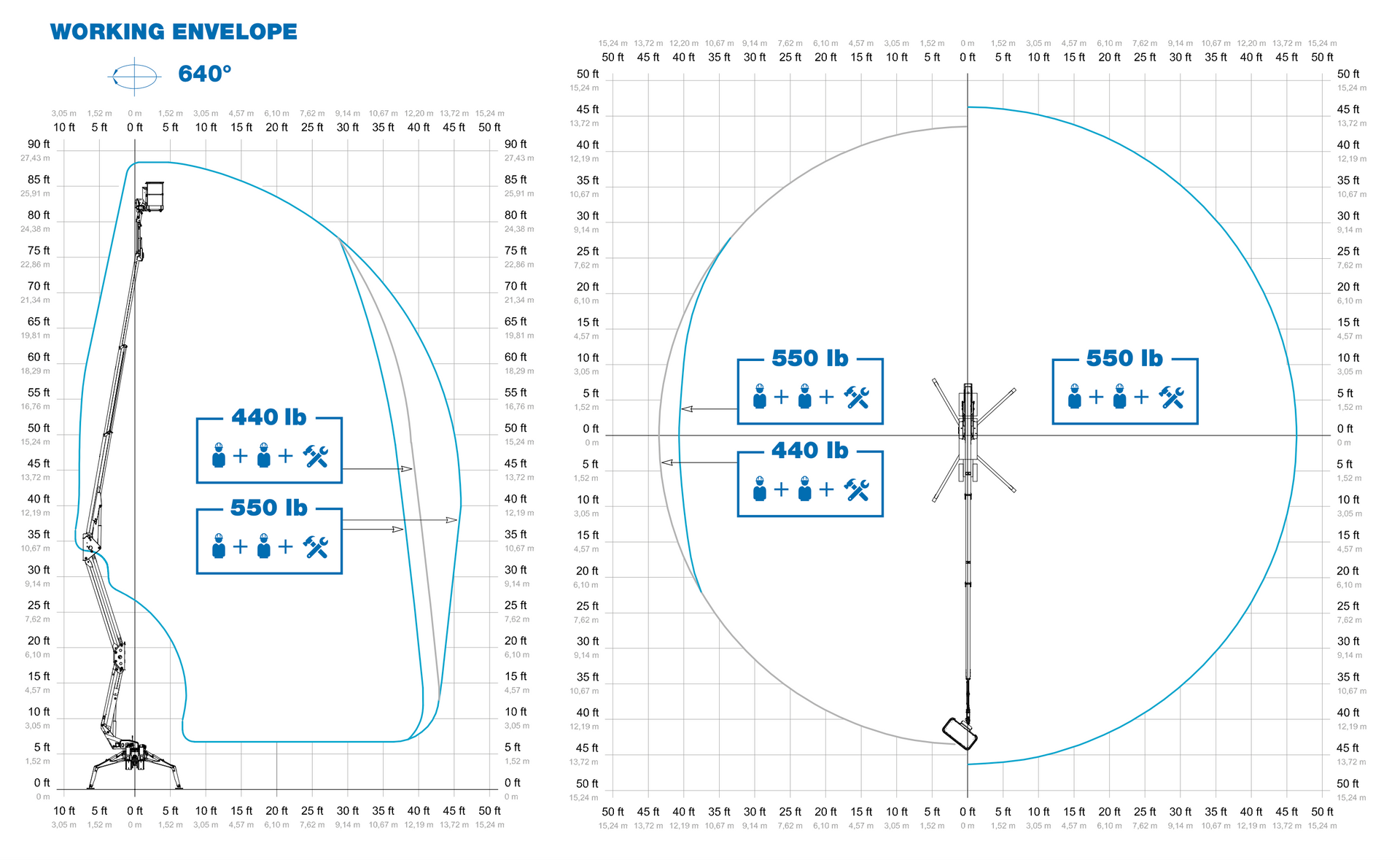

TRACCESS 270-88 Aerial Lift Working Envelope

Outrigger Footprint

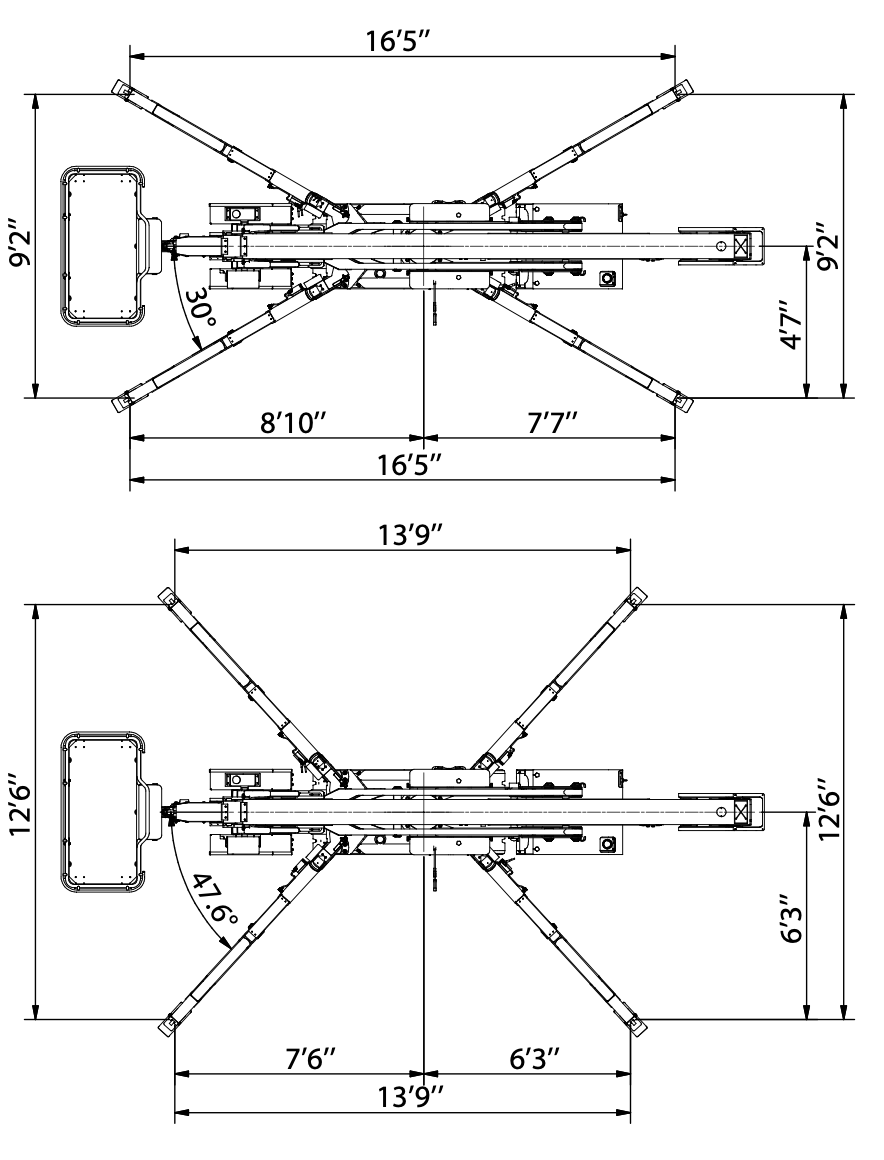

TRACCESS 270-88 Aerial Lift Outrigger Footprint

Dimensions

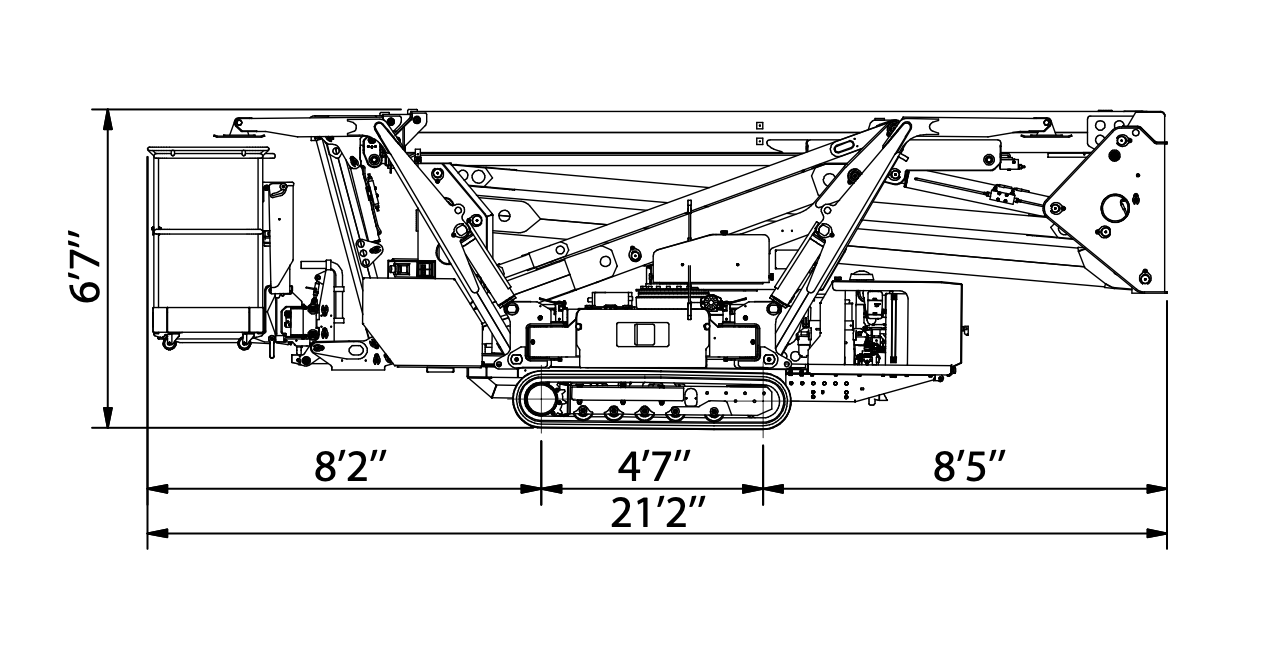

TRACCESS 270-88 Aerial Lift Dimensions

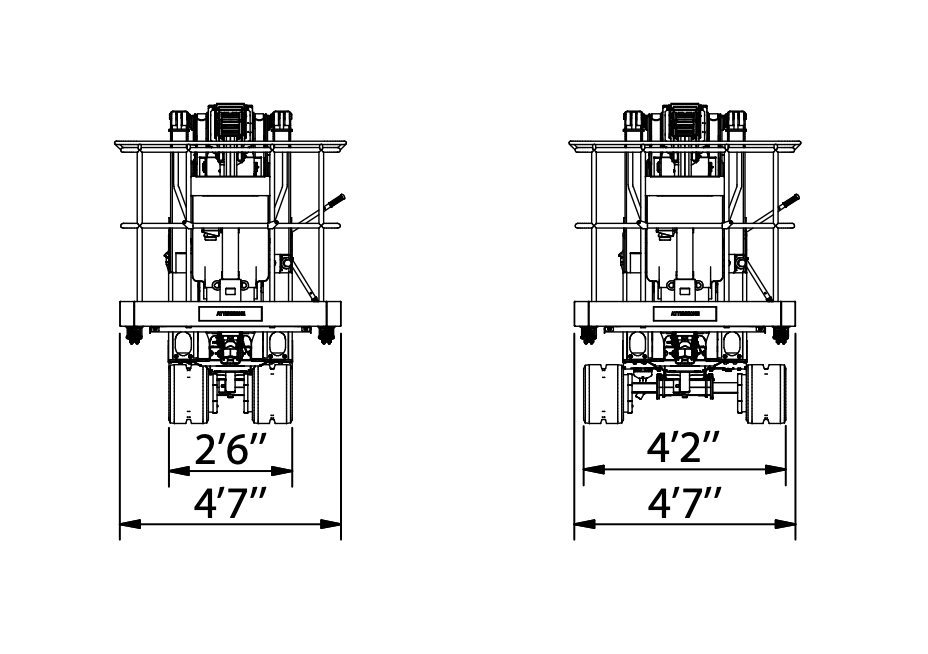

TRACCESS 270-88 Aerial Lift Dimensions
