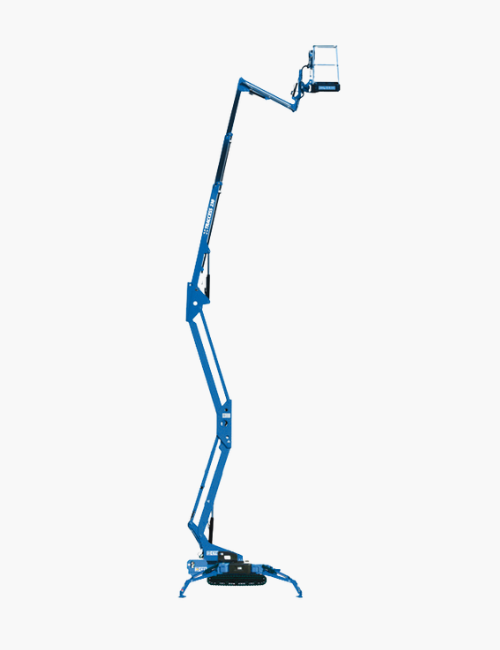

TRACCESS 230-75 CTE aerial Lift

TRACCESS 230-75

Product Highlights

dotted lines

75 ft / 23 m working height

39 ft / 12 m outreach

440 Ib / 200 kg load capacity

  • Most versatile boom configuration with telescoping upper boom, articulating jib, and rotating basket
  • CTE Connect Management system provides real-time data, including GPS tracking, diagnostics, and more
  • Sigma boom articulation
  • 620° non continuous turret rotation
  • Proportional simultaneous controls with smooth acceleration and deceleration
  • Engine start and stop controls from basket
  • Aluminum basket available in single (2’6” x 2’3” x 3’7”) or double (4’3” x 2’3” x 3’7”) personnel sizes
  • Fiberglass bucket upgrade available
  • ± 90° hydraulic basket rotation
  • Load cell consistently measures weight in basket
  • Wireless remote control
  • Dual drive speed
  • Narrow outrigger configuration capability
  • Track width extends from 2’7” to 4’2”
  • 120 V electric motor for interior operation available
  • Hydraulic basket auto-leveling
  • 4 hydraulic outriggers with ground pressure sensors
  • Hour meter
  • 110 V AC EC electrical socket in the basket
  • Standard boom colors blue (RAL 5017) or white (RAL 9003)
  • Gradeability approximately 31%
  • 4 stabilization areas with hydraulic placement
  • Can be towed under CDL

  • Kubota Z602 (2cyl) diesel engine (standard)
  • 48V 300 Ah Lithium battery

  • Most versatile boom configuration with telescoping upper boom, articulating jib, and rotating basket
  • Sigma boom articulation
  • 620° non continuous turret rotation
  • Proportional simultaneous controls with smooth acceleration and deceleration
  • Engine start and stop controls from basket
  • Aluminum basket available in single (2’6” x 2’3” x 3’7”) or double (4’3” x 2’3” x 3’7”) personnel sizes
  • Fiberglass bucket upgrade available
  • ± 90° hydraulic basket rotation
  • Load cell consistently measures weight in basket
  • Wireless remote control
  • Dual drive speed
  • Narrow outrigger configuration capability
  • Track width extends from 2’7” to 4’2”
  • 110 V electric motor for interior operation available
  • Hydraulic basket auto-leveling
  • 4 hydraulic outriggers with ground pressure sensors
  • Hour meter
  • 110 V AC EC electrical socket in the basket
  • Standard boom colors blue (RAL 5017) or white (RAL 9003)
  • Gradeability approximately 31%
  • 4 stabilization areas with hydraulic placement
  • Can be towed under CDL

  • Kubota Z602 (2cyl) diesel engine (standard)
  • 48V 300 Ah Lithium battery

Technical Diagrams

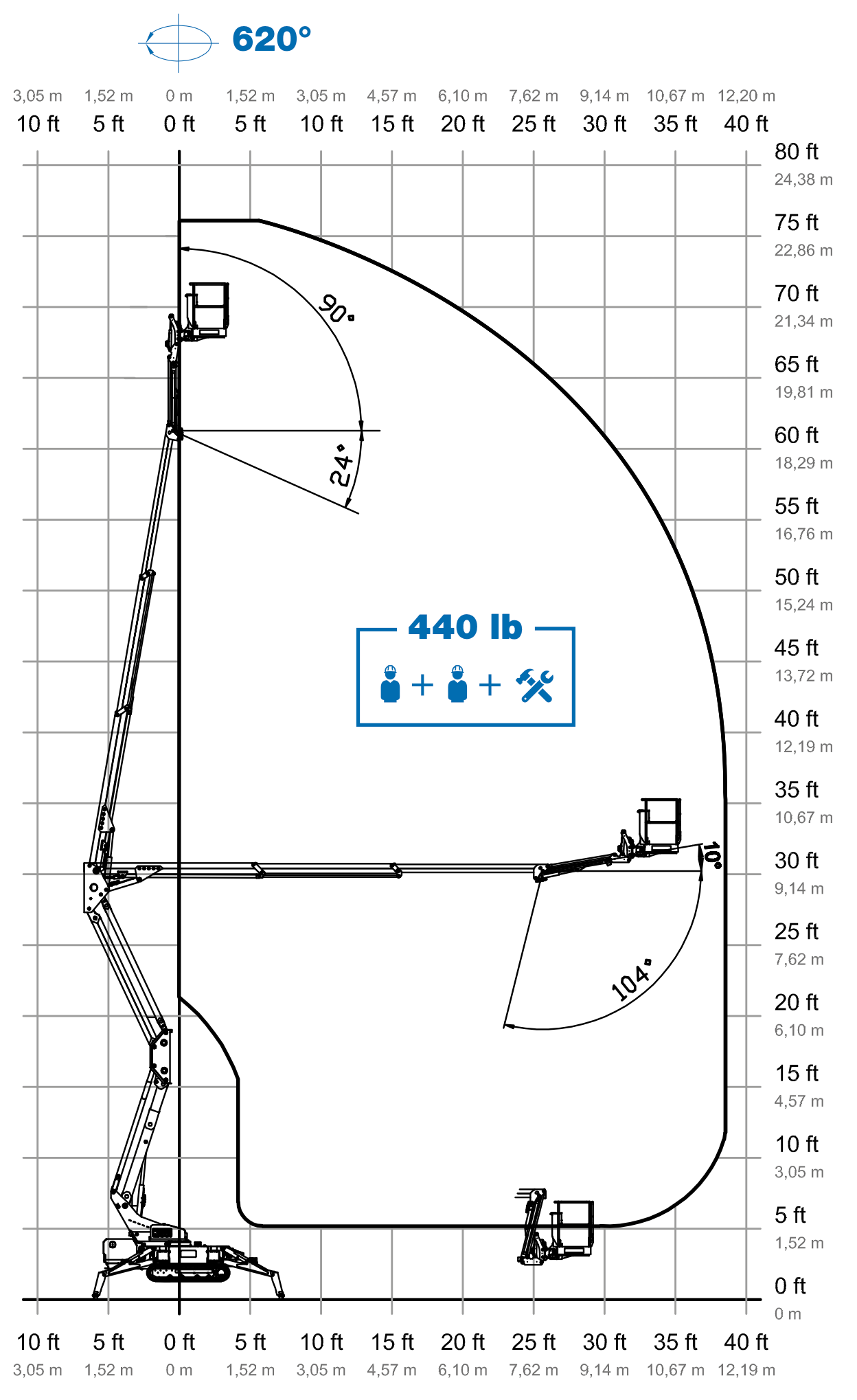

Working Envelope

TRACCESS 230-75 Working Envelope

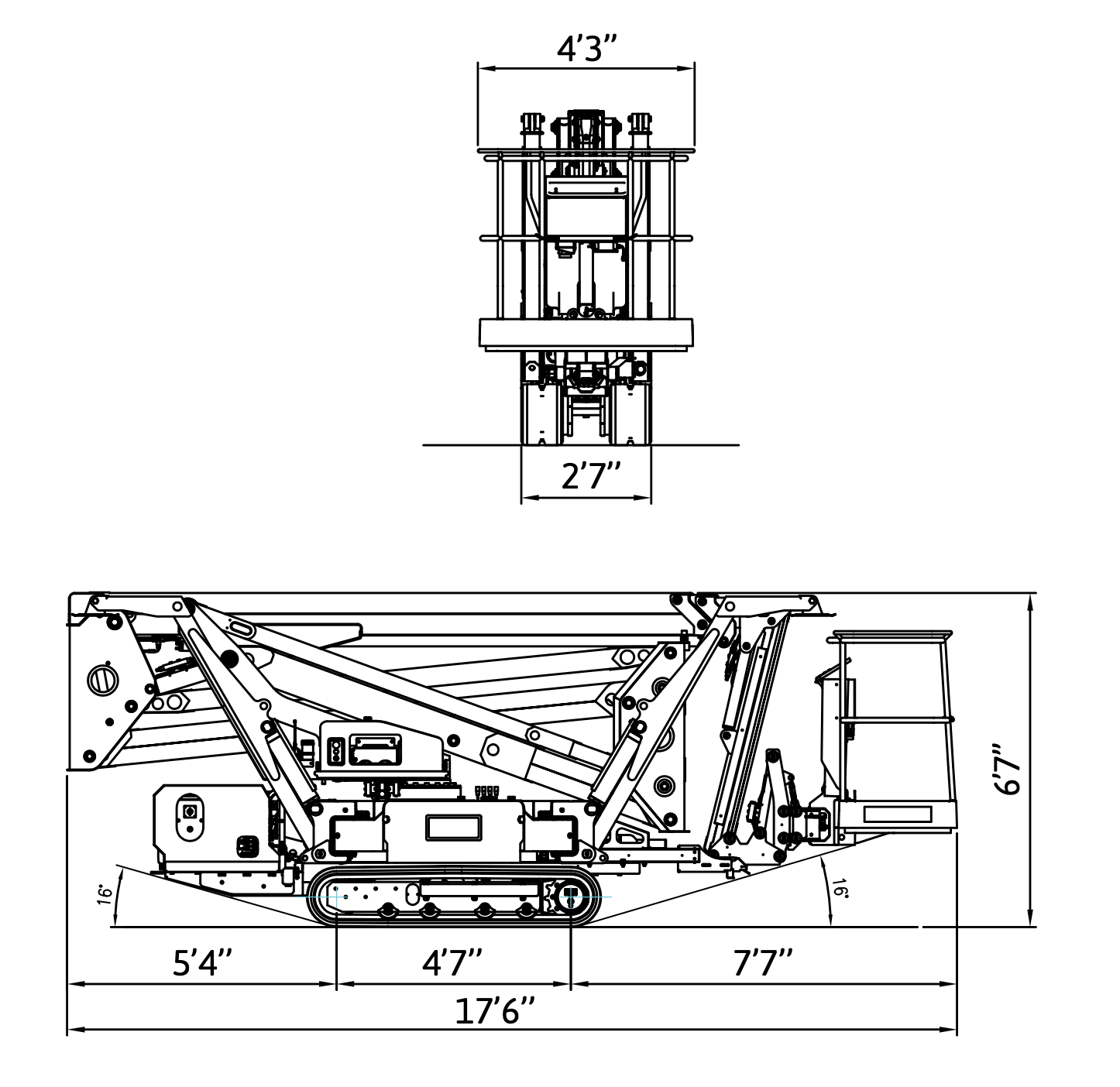

Dimensions

TRACCESS 230-75 Dimensions

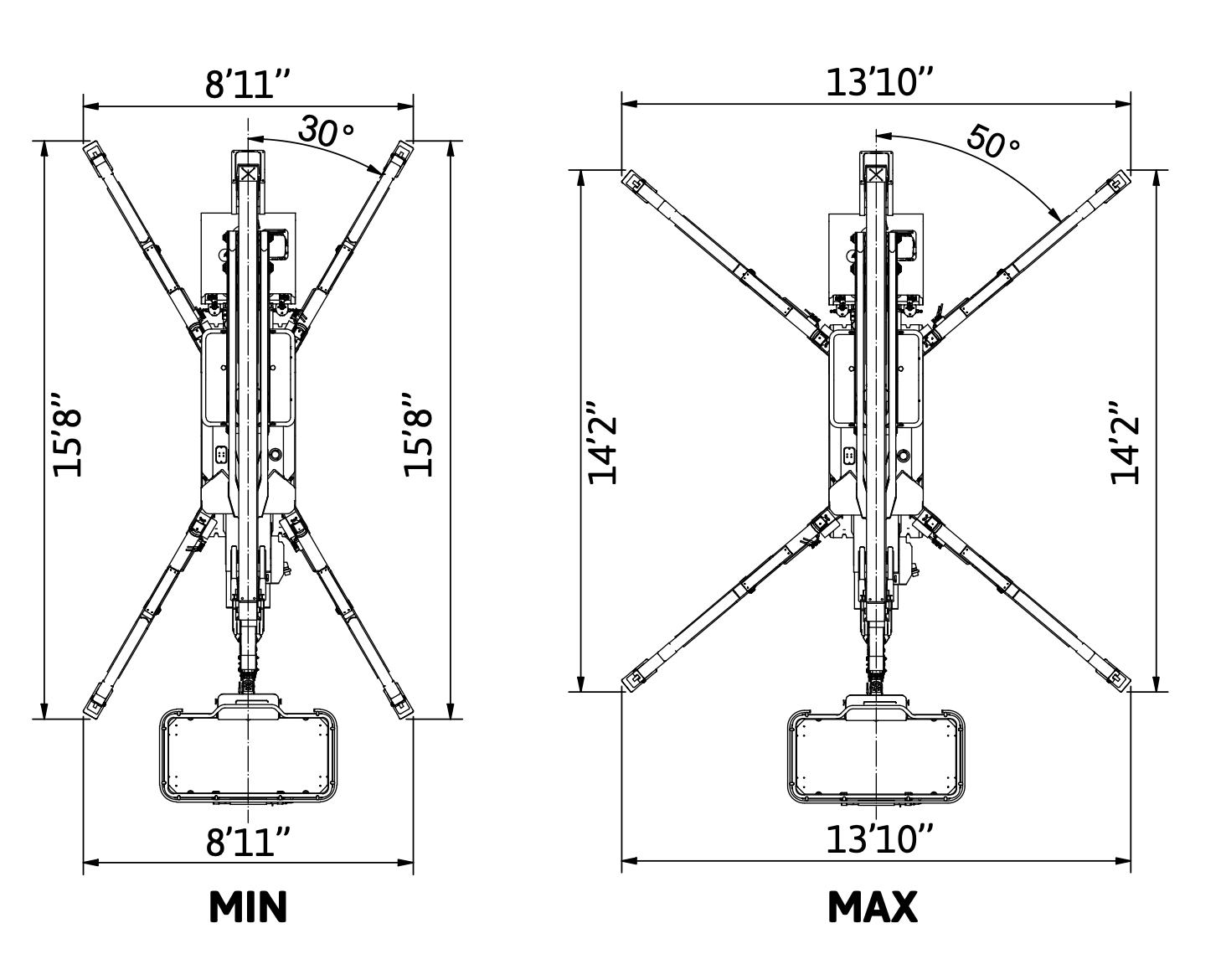

Outrigger Footprint

TRACCESS 230-75 CTE Outrigger Footprint

VIDEOS

TRACCESS 230-75 VIDEO
