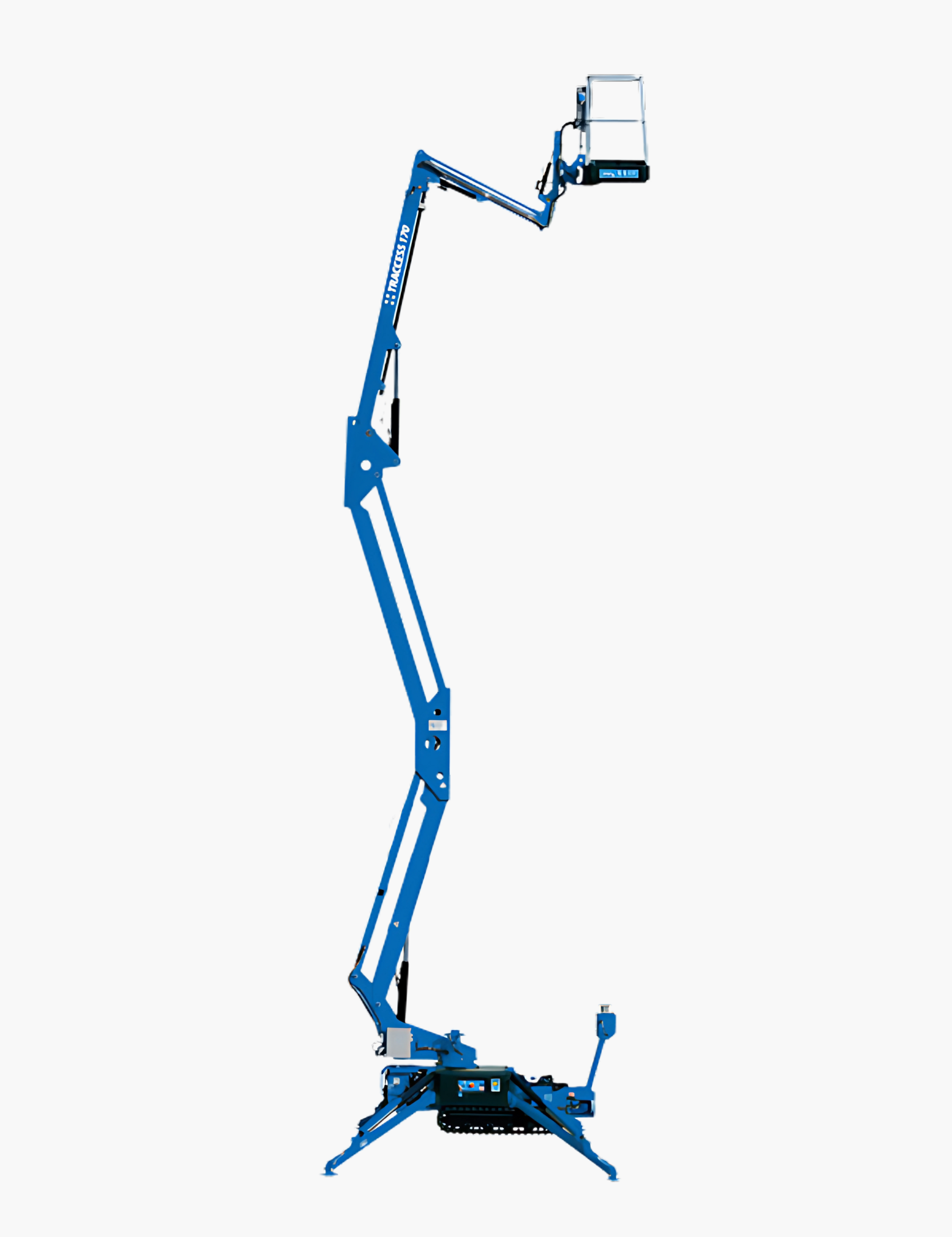

TRACCESS 160-51 lift CTE

TRACCESS 170-56

Product Highlights

dotted line

56 ft / 17 m working height

25 ft / 7.5 m outreach

440 Ib / 200 kg load capacity

  • Most versatile boom configuration with telescoping upper boom, articulating jib, and rotating basket
  • CTE Connect Management system provides real-time data, including GPS tracking, diagnostics, and more
  • Sigma boom articulation
  • 660° non continuous turret rotation
  • Proportional simultaneous controls with smooth acceleration and deceleration
  • Engine start and stop controls from basket and from wired remote control
  • Aluminum basket available  in single (2’6”x2’3”x3’7”) or double (4’3” x 2’3” x 3’7”) personnel sizes
  • ±90° hydraulic basket rotation
  • Hydraulic basket leveling
  • Dual drive speed
  • Track with extends from 2’6” to 4'2”
  • 120 V electric motor for indoor operation
  • Load cell consistently measures weight in basket
  • 4 hydraulic outriggers with ground pressure sensors
  • Hour meter
  • Standard boom colors blue (RAL 5017) or white (RAL 9003)
  • Max gradeability approximately 31%
  • User-friendly with intuitive controls
  • Can be towed under CDL

  • Honda 11 Hp gas engine (standard)
  • Kubota diesel engine
  • 48V 300 Ah Lithium battery

  • Most versatile boom configuration with telescoping upper boom, articulating jib, and rotating basket
  • Sigma boom articulation
  • 400° non continuous turret rotation
  • Proportional simultaneous controls with smooth acceleration and deceleration
  • 2.4 GHz remote control with integrated display, home function,15’4’’ stabilization and start/stop
  • Aluminum basket available
    in single (2’6”x2’3”x3’7”) or double (4’3” x 2’3” x 3’7”) personnel sizes
  • Fiberglass bucket upgrade available
  • ±90° hydraulic basket rotation
  • Basket leveling with electronic adjustment from remote controller
  • Engine start and stop controls from basket
  • Dual drive speed
  • Track with extends from 2’7” to 3’9”
  • CAN BUS electronic management system
  • 12V electric system
  • Load cell consistently measures weight in basket
  • 4 hydraulic outriggers with ground pressure sensors
  • Hour meter
  • 110 V AC EC electrical socket in the basket
  • Standard boom colors blue (RAL 5017) or white (RAL 9003)
  • Grade ability approximately 25%
  • 110 V electric motor for interior operation available
  • Rise and drive jib functionality - ability to drive with jib raised
  • Automatic stabilization
  • Can be towed under CDL

  • Honda 11 Hp gas engine
  • Lombardini diesel engine (standard)
  • 48V Lithium battery

Technical Diagrams

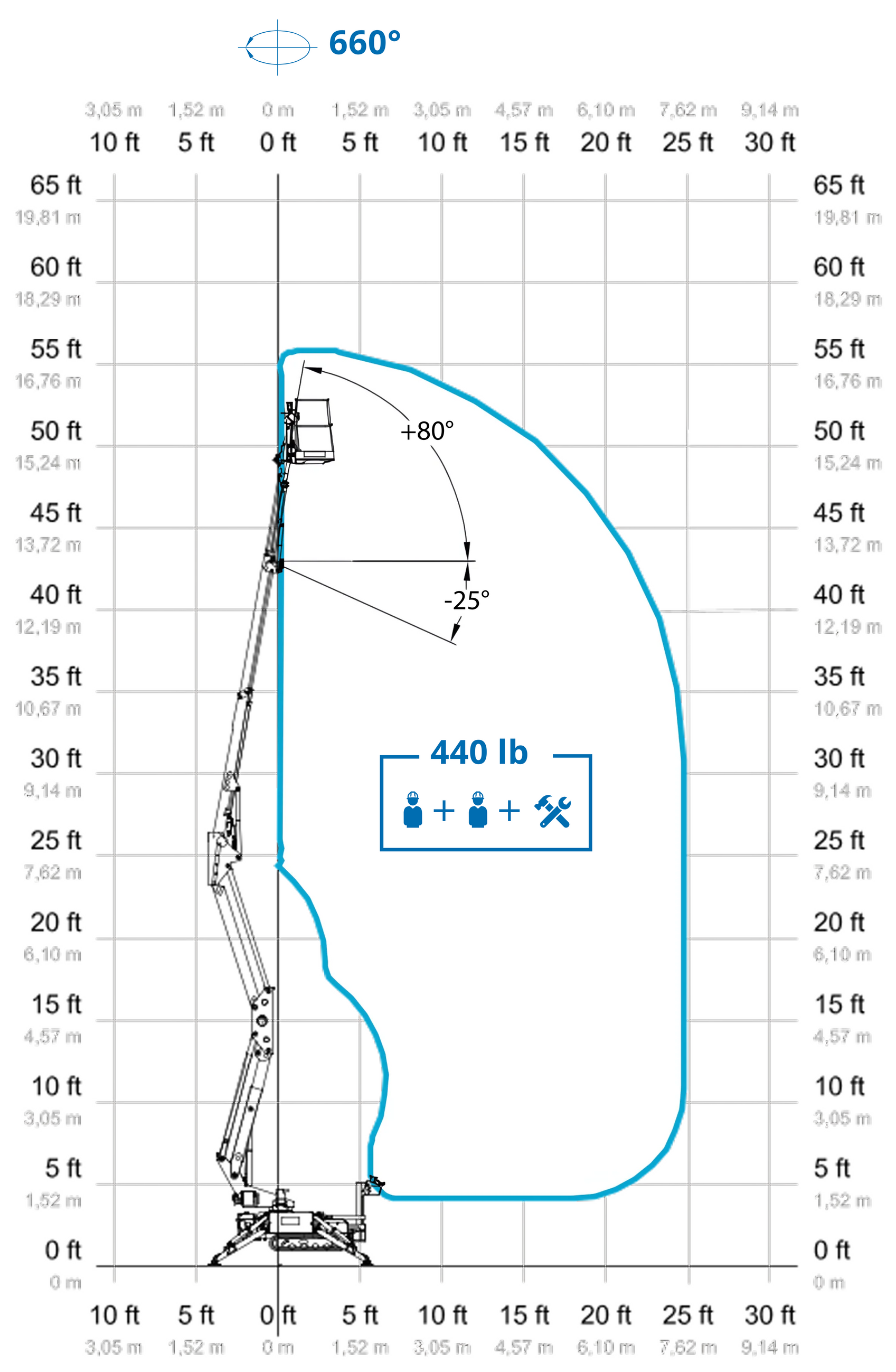

Working Envelope

TRACCESS 160-51 Working Envelope

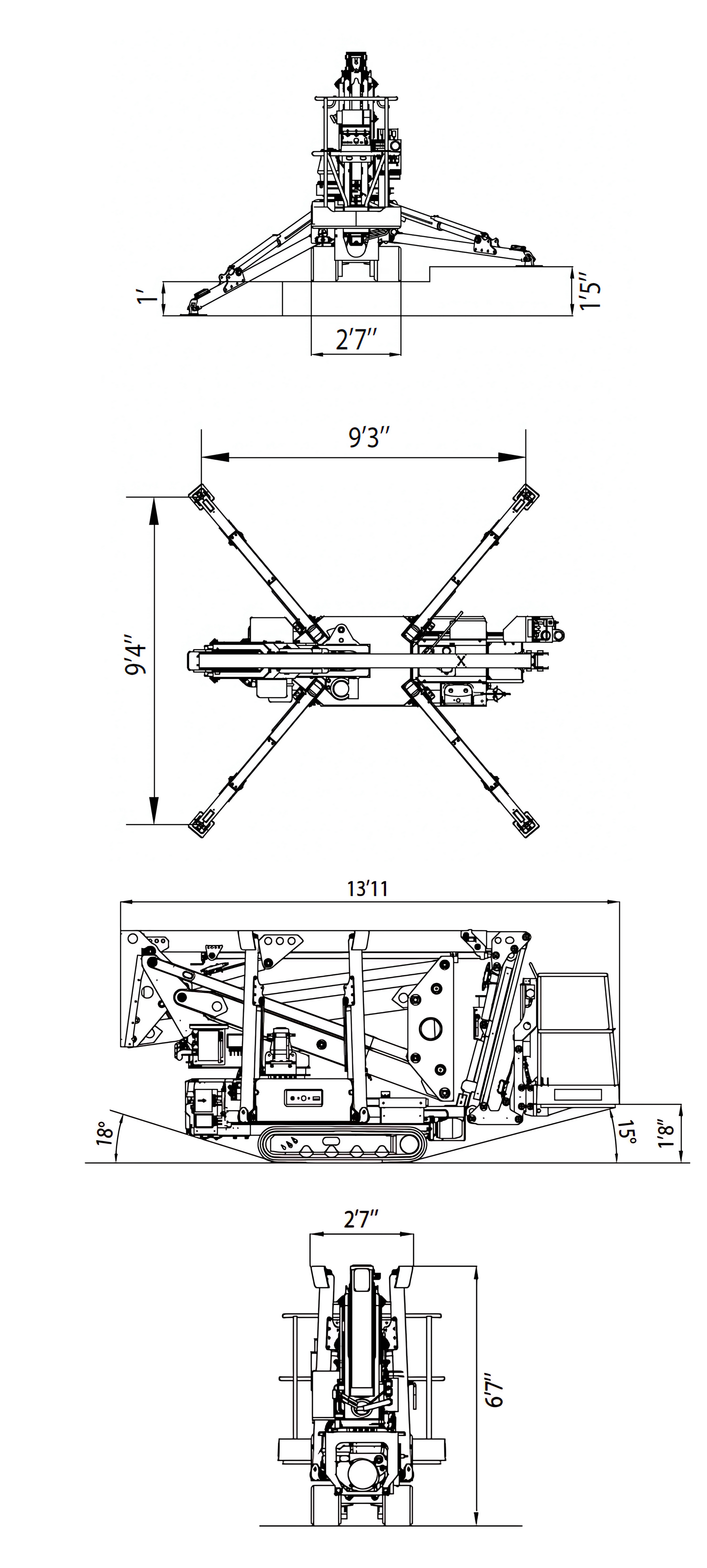

Dimensions

TRACCESS 160-51 Dimensions

GALLERY

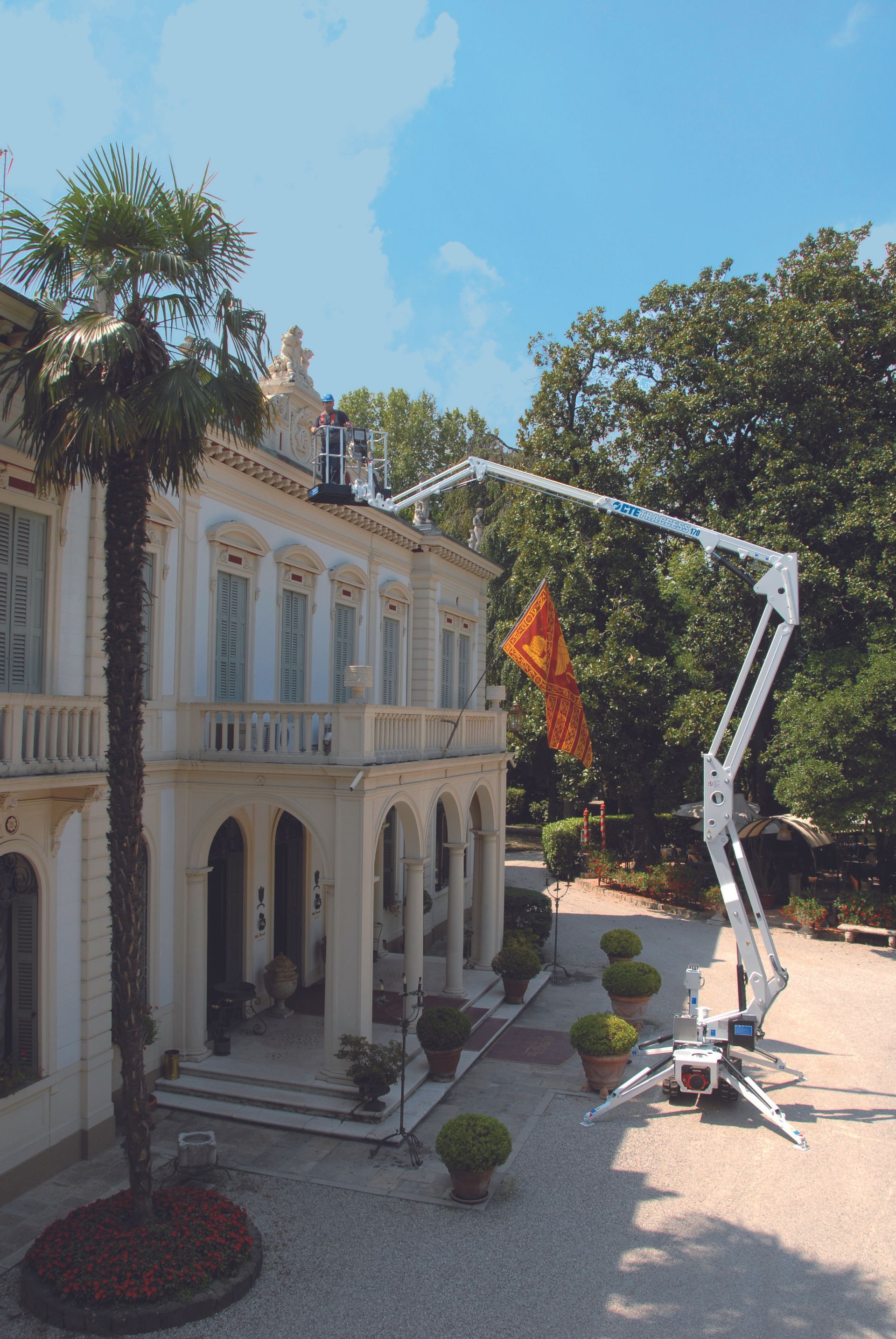

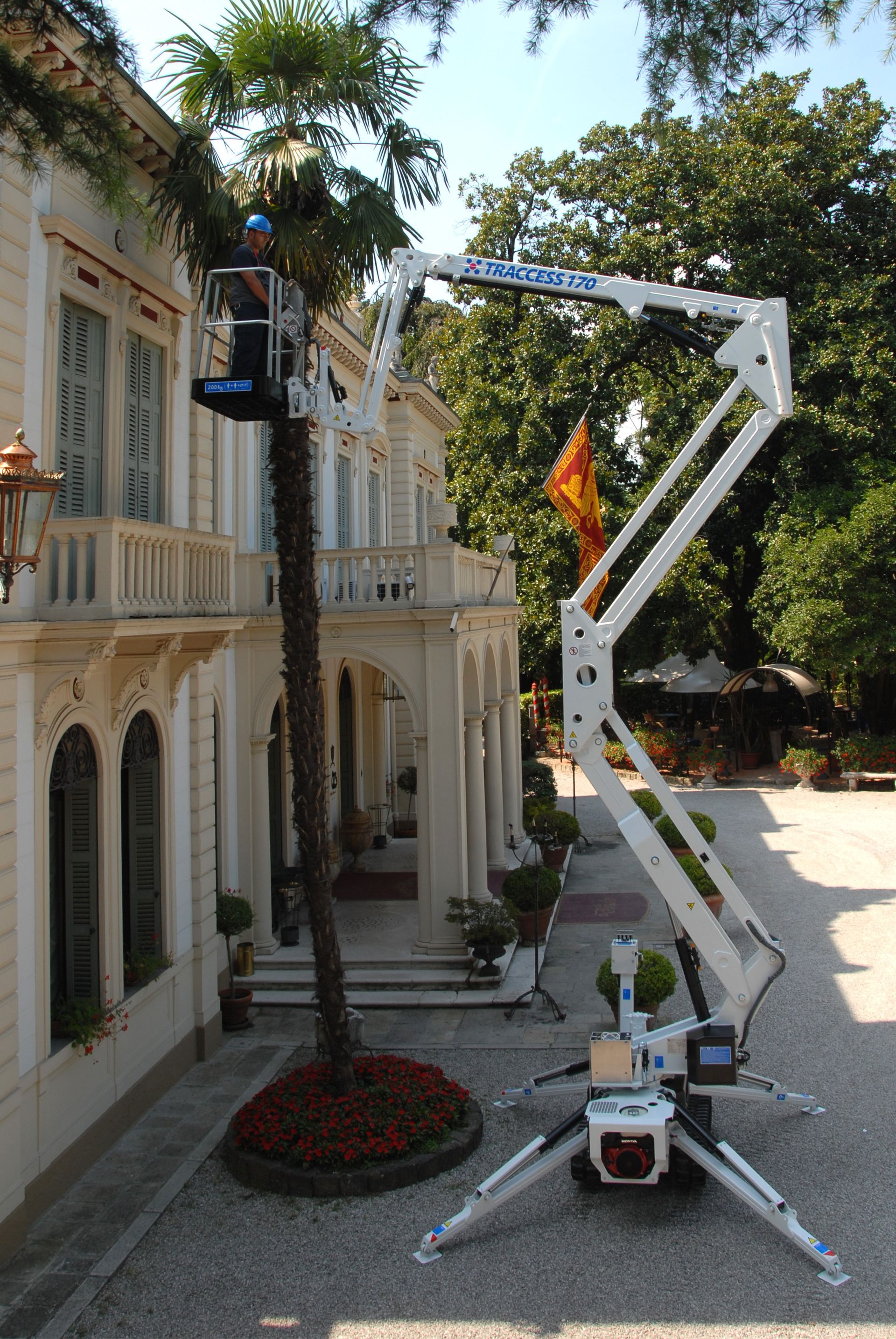

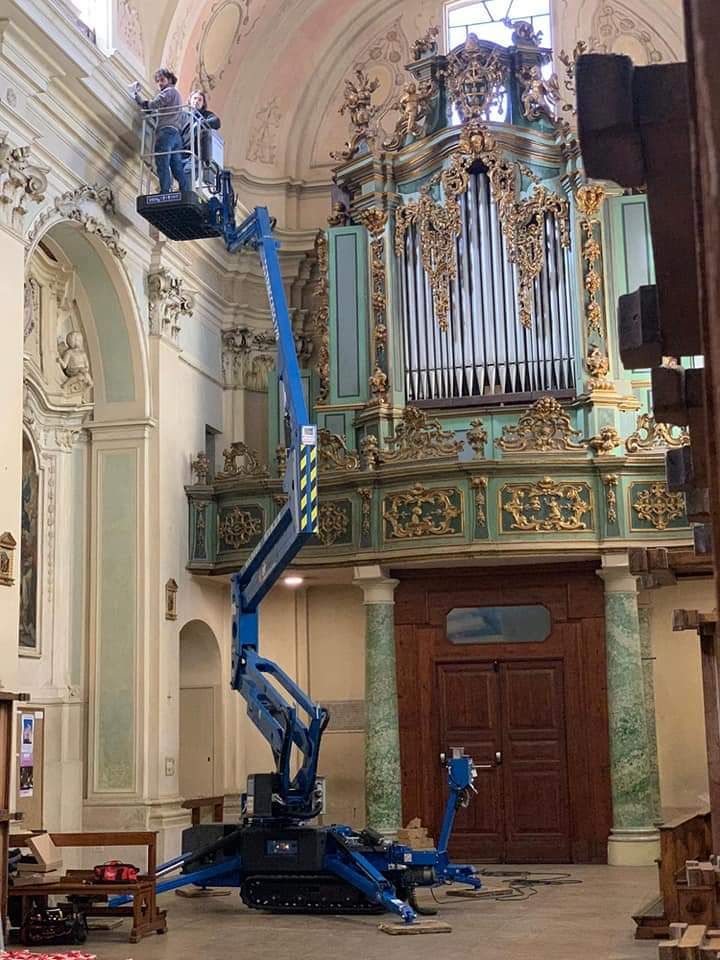

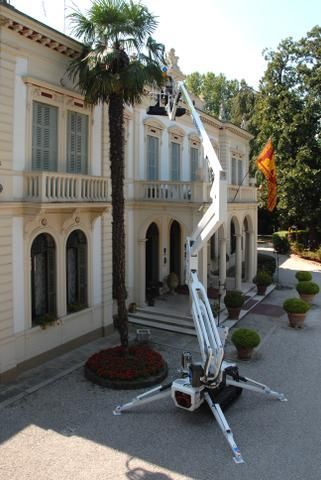

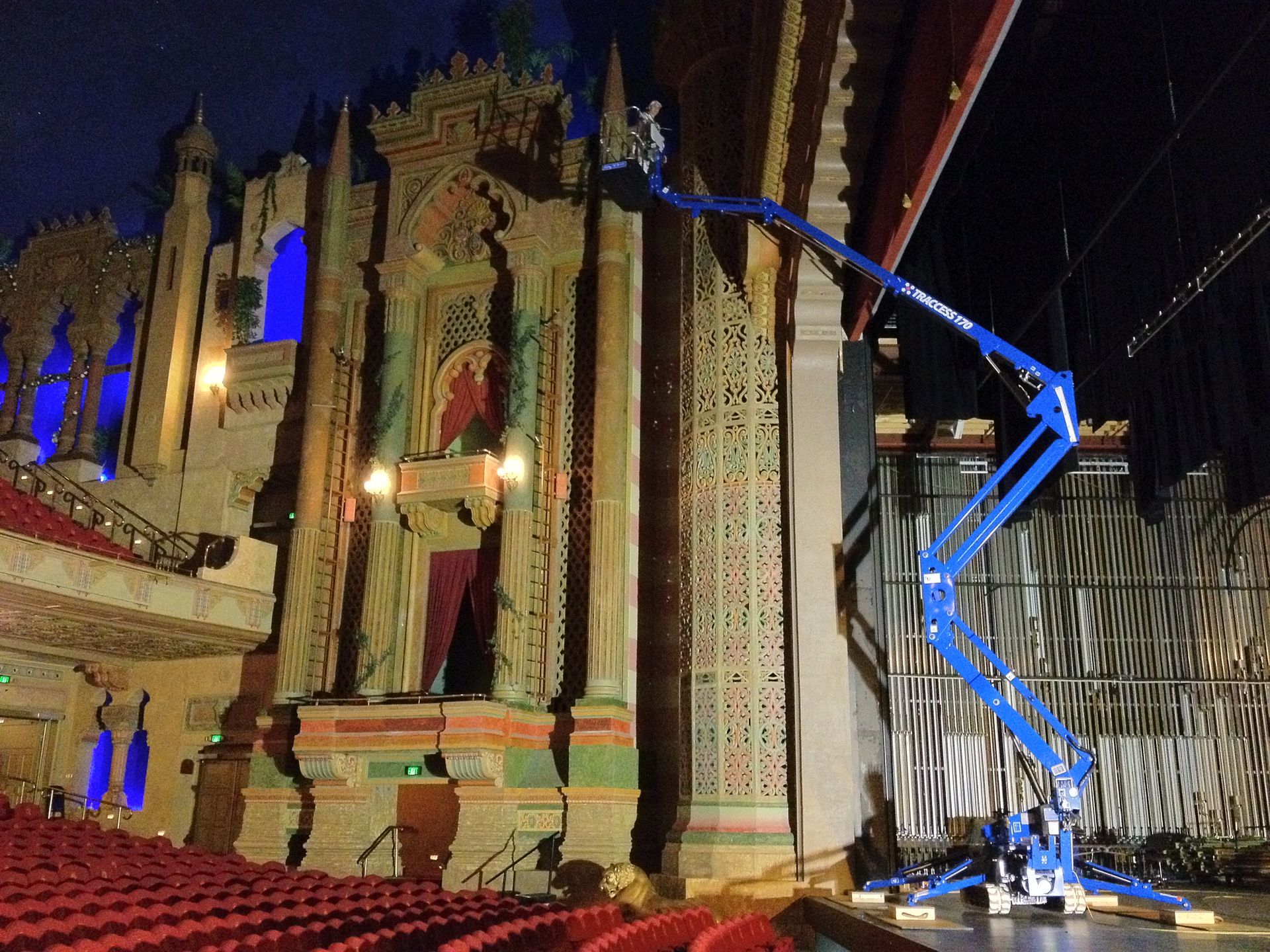

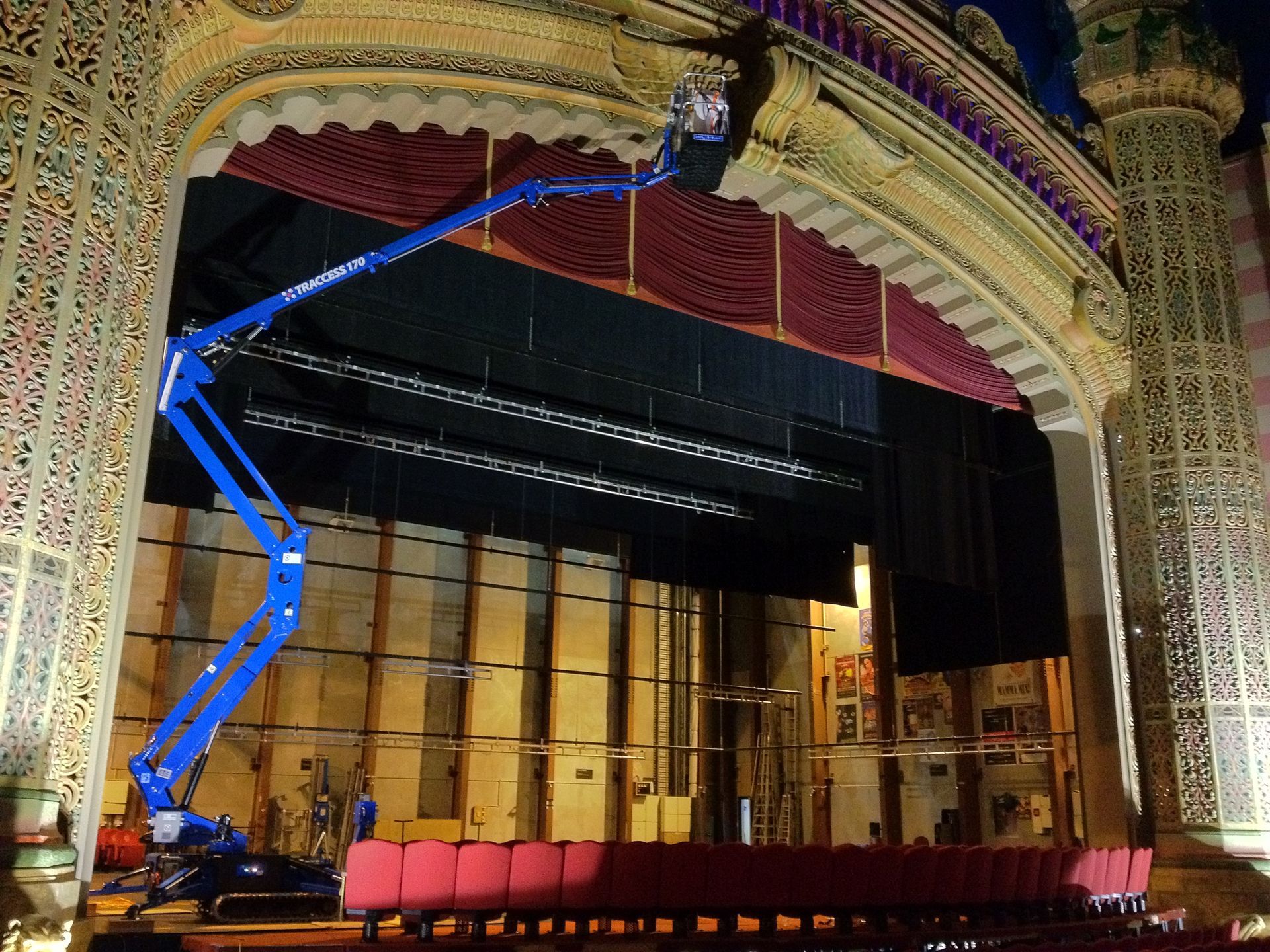

TRACCESS 170-56 Photo Gallery

dotted line

PRICING INFORMATION

Request a Quote
